      Modeling Centrifugal Pumps in FluidFlow Using Manufacturer Data

      Learn how to accurately model centrifugal pumps in FluidFlow using manufacturer data, from database setup to performance analysis, optimization, and preventing cavitation to ensure reliable system designs.





      Introduction

      Accurate modeling of centrifugal pumps is a critical foundation for reliable piping system design and analysis. This comprehensive guide explains how to effectively use manufacturer-supplied performance data in FluidFlow to create precise digital representations of real-world pumps. By mastering this process, you'll ensure your simulations accurately predict system behavior, optimize pump selection, and identify potential operational issues before they occur in the field.



      Whether you're designing a new system or analyzing an existing one, the ability to incorporate actual vendor pump curves allows you to confidently model real-world performance characteristics, including efficiency, power consumption, and cavitation potential. This guide will walk you through the complete workflow from adding manufacturer pump data to the database through analyzing system performance and optimizing your design.





      Overview of the Process

      Modeling centrifugal pumps with manufacturer data involves two main phases:


      1. Adding the pump to the database: Entering manufacturer performance curves into the FluidFlow Boosters database
      2. System modeling and analysis: Placing the pump in your system model and analyzing its performance

      This guide provides a step-by-step approach for both phases, ensuring you can confidently model any centrifugal pump with manufacturer-supplied data.





      Adding a Manufacturer Pump to the Database

      Step 1: Access the Boosters Database


      1. Navigate to Database → Boosters in the main menu
      2. Select Centrifugal Pump from the dropdown list
      3. Click the Add button to create a new pump entry
      4. Provide a descriptive name for the pump (e.g., "Vendor X - Model Y - 330 mm - 1475 rpm")

      Step 2: Enter General Pump Specifications

      Input the following specifications from the manufacturer's datasheet:


      • Data Operating Speed: Enter the pump's operating speed (e.g., 1475 RPM)
      • For variable speed pumps, specify both minimum and maximum speed values
      • Data Impeller Diameter: Enter the nominal diameter (e.g., 330 mm)
      • Minimum Diameter: Enter the smallest available impeller size (e.g., 250 mm)
      • Maximum Diameter: Enter the largest available impeller size (e.g., 350 mm)
      • Optional: Add manufacturer, material, and application details for data organization
      • Optional: Include maximum operating pressure, suction, and discharge sizes if available

      Step 3: Define the Capacity Curve (Head vs. Flow)

      This is the primary performance curve that defines the head a pump can generate at various flow rates:


      1. Click the three-dot button in the Capacity Curve Data field
      2. Select appropriate units for flow (e.g., m³/h) and head (e.g., m Fluid)
      3. Enter the data points from the manufacturer's curve:
        • Start with zero flow condition (shut-off head)
        • Include multiple intermediate points for accuracy
        • Add a final data point at zero head (to prevent curve inflection)
      4. Define operating limits (Min and Max flow) based on the manufacturer's recommended range
      5. Select the equation order (or choose BestFit to let the solver automatically determine the optimal equation)
      6. Verify that the generated curve accurately represents the manufacturer's data
      7. Click OK.

      Step 4: Define the Efficiency Curve

      The efficiency curve is crucial for accurate power calculations and optimal pump selection:


      1. Click the three-dot button in the Efficiency Curve Data field
      2. Select appropriate flow unit
      3. Enter efficiency vs. flow data points
        • Include sufficient points to accurately depict the efficiency curve
      4. Set operating limits to reflect the manufacturer's recommended range (optional)
      5. Select the equation order (or choose BestFit to let the solver automatically determine the optimal equation)
      6. Verify the curve visually matches the manufacturer's data
      7. Click OK.

      Step 5: Define the NPSHR Curve

      The NPSHR curve is essential for cavitation analysis:


      1. Click the three-dot button in the NPSH Curve Data field
      2. Select appropriate units for flow (e.g., m³/h) and NPSH (e.g., m Fluid)
      3. Enter NPSHR vs. Flow data points from the manufacturer's curve
      4. Set operating limits to reflect the manufacturer's recommended range (optional)
      5. Select the equation order (or choose BestFit to let the solver automatically determine the optimal equation)
      6. Visually confirm that the curve accurately reflects the manufacturer's data
      7. Click OK.

      Note: If NPSH and efficiency data aren't available, you can still add the pump, but analysis related to these data will be limited. Try to obtain these data from the manufacturer for critical applications.



      Once all the information is entered, click OK to save the pump to the database.





      Modeling and Analyzing the Pump in a System

      Now that you've added the pump to the database, you can use it in any FluidFlow model.

      Step 1: Build the System and Insert the Pump

      Set up a simple system to validate the pump's performance:


      1. Construct your piping system on the flowsheet by adding pipes, tanks, and other components.
      2. From the Component Palette under the Boosters tab, drag and drop a Centrifugal Pump node onto your pipeline.

      Step 2: Assign the Manufacturer Pump to the Model


      1. Select the pump node on the flowsheet.
      2. In the Input Editor, turn off the Automatically Size option.
      3. Click the three-dot button beside the Pump Model field.
      4. Find and select the manufacturer pump you added earlier, then click OK.

      Step 3: Calculate and Analyze Results

      Run the calculation and review key performance metrics:


      1. Click the Calculate button in the main toolbar
      2. Review the Messages tab for any warnings
      3. Select the pump to examine its calculated performance:

        • Duty Flow Rate
        • Duty Pressure Rise
        • Duty Efficiency (%)
        • Duty Power
        • Duty NPSH Available vs. Duty NPSH Required

      Step 4: Visualize Performance Using Charts

      Use the Chart tab to analyze how the pump interacts with your system:

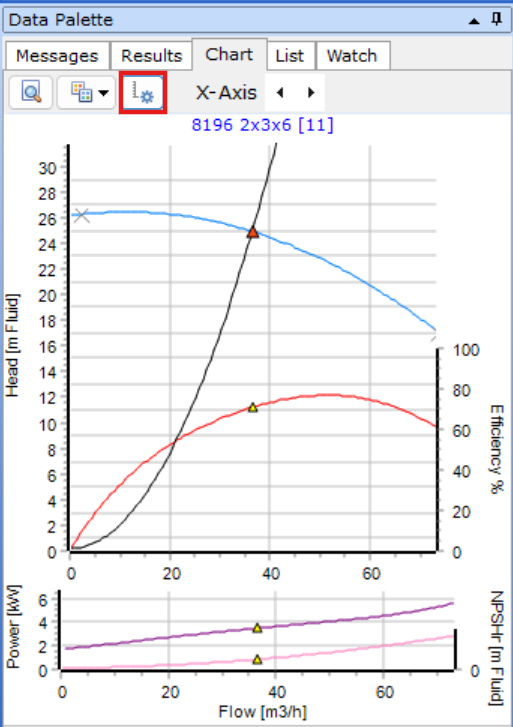

      1. With the pump selected, navigate to the Chart tab in the Data Palette

      2. The chart will display the pump's performance curves (Head, Efficiency, Power, NPSHr) with the calculated Duty Point clearly marked.

      3. To understand how the pump and system interact, enable the Show System Curve by clicking the Settings button in the chart's toolbar.





        The intersection of the pump's Capacity Curve and the System Curve defines the operating duty point.

      4. Check proximity to the Best Efficiency Point (BEP)

      5. Verify NPSH Available exceeds NPSH Required by an adequate margin

      Step 5: Optimize the System

      Make adjustments to improve system performance:


      • If the duty point is far from BEP, consider:

        • Adjusting pipe diameter to modify system resistance
        • Changing control valve settings
        • Selecting a different pump or impeller size

      • If velocity is excessive (>3-4 m/s for many water systems):

        • Increase pipe diameter
        • Modify system layout

      • If NPSH margin is insufficient:

        • Raise suction pressure
        • Reduce elevation differences
        • Consider a different pump with lower NPSH requirements




      Best Practices

      Data Entry and Curve Definition


      • Always use complete manufacturer performance curves when available
      • Include sufficient data points to accurately capture curve shapes
      • Define the full quadrant from shut-off (zero flow) to maximum flow (zero head) in the Capacity curve
      • Visually verify that fitted curves match the manufacturer's data points
      • Double-check that operating limits reflect the manufacturer's recommended range

      System Design Considerations


      • Aim to operate pumps near their Best Efficiency Point (BEP)
      • Keep pipe velocities within recommended ranges (varies depending on fluid service and project criteria)
      • Maintain adequate NPSH margin
      • Review all warning messages after calculations and address them appropriately
      • Document data sources and assumptions for future reference

      Modeling Workflow


      • Consider using Automatic Pump Sizing initially to understand system requirements
      • Progress to manual selection using manufacturer data
      • Verify results against expected performance parameters
      • Iterate as needed to optimize the system




      FAQs

      Q: What if my manufacturer's data sheet is incomplete or I don't have all the required curve data?

      A: You can still add the pump with the capacity (head-flow) curve as a minimum. The software will model the hydraulic performance but will be unable to accurately calculate power consumption, efficiency, or NPSHR. For complete system analysis, we recommend obtaining all three curves (capacity, efficiency, and NPSH) whenever possible.



      Q: Why is the calculated NPSH Required (NPSHR) showing as zero?

      A: This typically means the NPSHR curve data was not entered into the pump's database entry. To fix this, edit the pump in the Boosters Database and add the NPSHR vs. Flow data points.



      Q: Which curve-fitting equation should I use?

      A: Start with Quintic, which typically provides the best fit for standard centrifugal pump curves. Always visually verify the resulting graph and select the equation that most accurately matches your data points. Alternatively, you can select Best Fit to let the solver automatically choose the most appropriate equation for your data.



      Q: How do I know if my pump is operating efficiently?

      A: Check that your operating point falls near the Best Efficiency Point (BEP) on the pump curve, typically within 80-110% of BEP flow rate.



      Q: How can I see how system changes affect the pump's operating point?

      A: After calculating, make a change to the system (e.g., increase a pipe's length, throttle a control valve) and recalculate. The duty point on the pump chart will move along the capacity curve, showing you the immediate impact on flow, head, and efficiency.



      Q: Can I model pumps with variable frequency drives (VFDs)?

      A: Yes, you can either define the speed range (include minimum and maximum operating speed) or create separate database entries for specific speeds. For detailed VFD analysis, consider creating multiple pump entries at different speeds and comparing their performance.





      Conclusion

      Precise modeling of centrifugal pumps with manufacturer data is essential for reliable FluidFlow simulations. By correctly incorporating vendor performance curves, you can accurately predict system behavior, optimize designs, and prevent operational problems.



      This approach ensures pump selections are based on accurate data, operating points are properly validated, and potential issues like cavitation are identified early. Whether you're designing new systems or troubleshooting existing ones, these modeling techniques lead to more dependable and efficient systems.



      Accurate pump modeling in FluidFlow allows you to precisely predict system behavior, optimize pump selection, and ensure your designs are both efficient and reliable.
